DGI (DGen) Apollon
The DGI (Dgen) Apollon printer is a high-performance textile printer designed for direct-to-fabric printing. It is known for its speed, precision, and reliability, making it an ideal choice for industrial-scale textile production. Featuring advanced printhead technology, the Apollon ensures exceptional image quality and vibrant colors.
This printer is built with a robust fabric handling system that allows for smooth and accurate feeding of various fabric types, from lightweight materials to heavier textiles.
Description
Product Info
- High-speed performance: Capable of printing large volumes efficiently.
- Superior print quality: Crisp details and vibrant colors with precision printhead technology.
- Fabric versatility: Supports a wide range of fabrics for diverse applications like fashion, home textiles, and soft signage.
- Bulk ink system: Large-capacity ink tanks for extended printing without interruptions.
- Ease of use: User-friendly interface with automated features for streamlined operations.
Proprietary Waveform Technology
The dedicated waveform developed by DGI enables a response to customers’ demands for quality across various fabrics.Removable Belt Cleaning System
The fully detachable belt cleaning system makes maintenance easy, enhances fabric adhesion, and efficiently removes moisture.Enhanced Tension Control

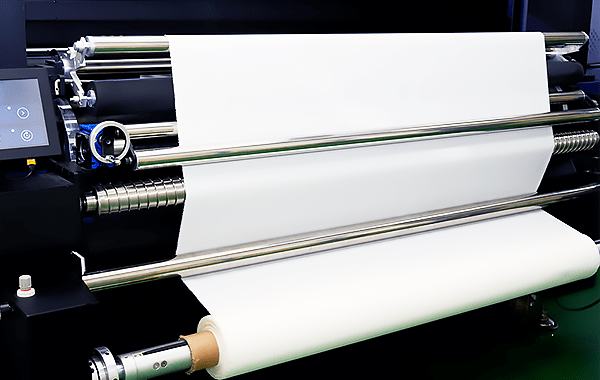

Featuring expansion rollers and a tension control mechanism, the media feeding system ensures greater accuracy and precision.Dual Printhead Protection System

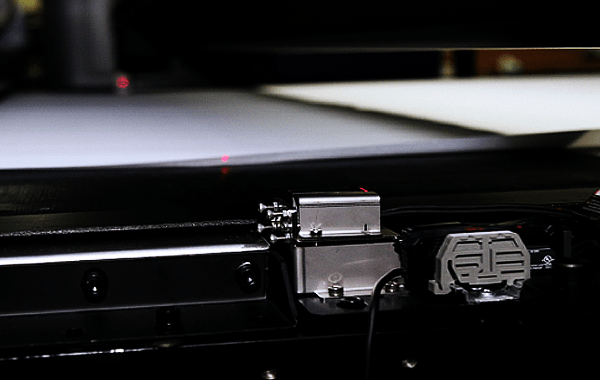

To safeguard the printheads from damage, a dual protection system is employed, incorporating both a wrinkle detection mechanism and a media collision sensor.Dual Unwinding System

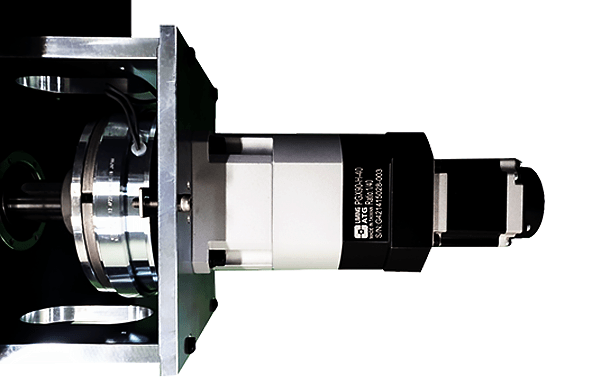

Two unwinder systems are available for different fabric types: an air brake system for woven materials and a motor-clutch system for knits.Mist Removal in Body & Printhead Carriage

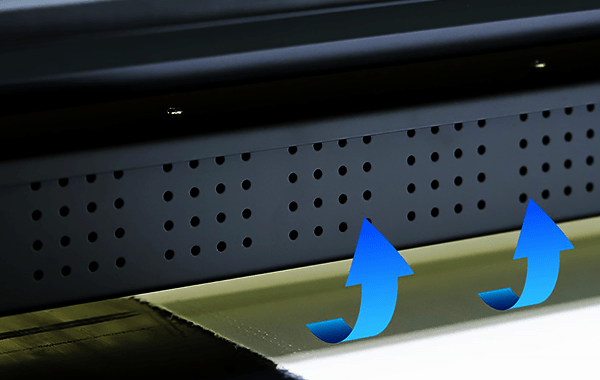

Dual mist removal systems efficiently eliminate ink and dust during printing, protecting both the media and surrounding equipment from contamination.Product Video
Technical Specifications
Printing Speed
- 70sqm/h - 600 X 600dpi 2pass
- 52sqm/h - 600 X 900dpi 3pass
- 42sqm/h - 600 X 1,200dpi 4pass
- Yellow, Magenta, Cyan, Black + Lc, Lm, Sc, Gr
- 5L
- Pigment
Print Head
- Ricoh, 5 Heads
- 6 + CBS
- 600 x 1,200dpi
- 1,830mm
- Bi-Direction/Uni-Direction
