Klieverik Flowline
The GTC-SP Flowline model is engineered for the efficient production of single-piece transfer printing, yet it also has the flexibility to handle cut sheet repeat jobs or roll-to-roll transfer printing.

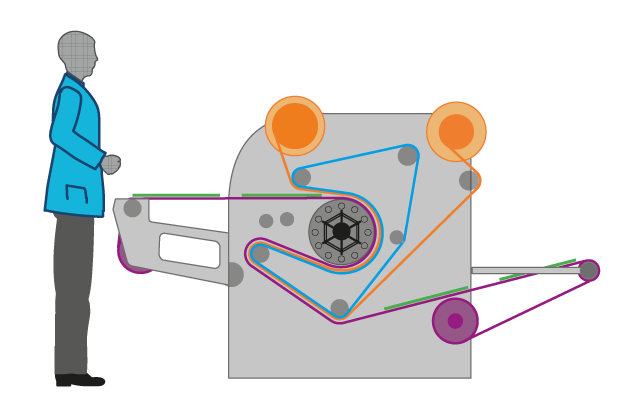

The calender is called Flowline due to its material transport process. Blank pieces are placed on the infeed table and smoothly moved to the back of the calender, where the printed items can be conveniently collected and organized.
Description
Product Info
- Low tension textile unwind
- Textile tensioning device
- Universal unwind shaft for textiles rolls for any core diameter
- Wind and unwinding shafts for transfer and protection paper, each with tensioning device
- Contact winder for textileScraper blades to prevent paper or textile from wrapping around the drum and cleaning of the drum
- Cooling down and start-up timer
- Air pressure operated paper tension setting
- Touchscreen
Professional Output
The precise guidance of the long belt, along with the smooth movement of the paper and material, enables printing with exceptional edge sharpness. Additionally, the stable temperature of the oil-based and electrically heated drum ensures outstanding color brilliance.Available Options
Extended infeed table, Textile unwind and winding position for roll-to-roll printing, Pneumatic winding shafts, Compressor, Touch screen with remote control capabilitiesApplications
A wide variety of materials, including knits, stretch fabrics, and wovens, can be utilized for applications ranging from sportswear to heavy-duty doormats.Product Video
Technical Specifications
| Type | Drum diameter | Working Width | Throughput 30s dwell | |||
|---|---|---|---|---|---|---|
| mm | inch | mm | inch | m2/h | ft2/h | |
| GTC 81-1850 SP FL | 195 | 7.7″ | 1650 | 64.9″ | 59 | 639 |
| GTC 101-1850 SP FL | 365 | 14.4″ | 1650 | 64.9″ | 114 | 1225 |
| GTC 111-2000 SP FL | 500 | 19.7″ | 1800 | 70.8″ | 173 | 1859 |
| GTC 131-2000 SP FL | 760 | 30″ | 1800 | 70.8″ | 262 | 2824 |
| GTC 141-2000 SP FL | 1070 | 42.1″ | 1800 | 70.8″ | 369 | 3974 |
