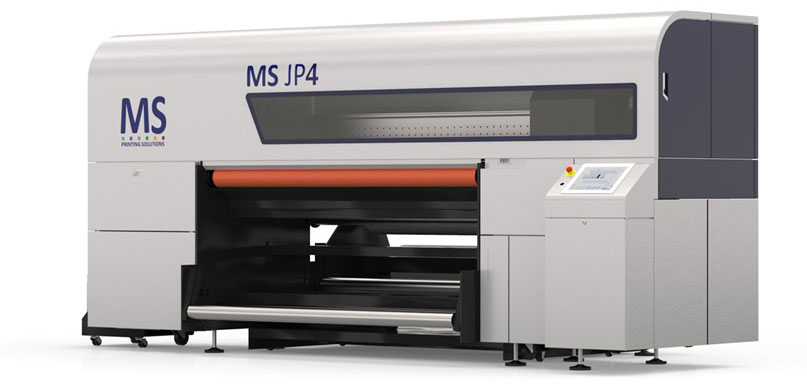

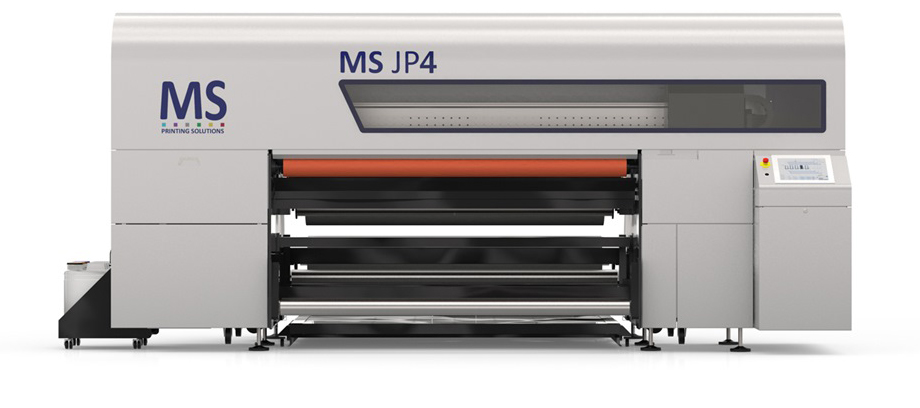

MS JP4 Evo

MS JP4 EVO machines are engineered to print on both paper and non-elastic fabric. They are an ideal choice for those looking to enter the Industrial Digital Textile Printing Market with a moderate investment, without sacrificing printing speed or performance. MS JP4 EVO is recommended for:

Description

Product Info

  • Print Width Options: Available in 70-inch (1.8 m) option.
  • Kyocera Printheads: Equipped with industrial Kyocera printheads that offer 16 grayscale levels for high-quality prints.
  • Versatile Printing: Easily switch between transfer paper and direct-to-fabric printing.
  • Advanced Handling System: Features a vacuum and media handling system to ensure accurate dot placement.
  • High Production Speeds: Capable of printing up to 3,390 square feet per hour.
  • QWizard™ Digital Front End: An optional feature for enhanced production management.

Reviews

There are no reviews yet.

Be the first to review “MS JP4 Evo”

Your email address will not be published. Required fields are marked *

High-Volume Production

Ideal for upgrading your dye sublimation fleet or expanding into soft signage, with fast production speeds and excellent color and image quality.

Industrial Printheads

Equipped with four or eight Kyocera printheads, offering 16 grayscale levels and variable drop sizes from 4 pl to 72 pl. This ensures smooth gradients and vibrant, high-density colors.

Stable Media Positioning

The advanced vacuum plate maintains consistent media adhesion and accurate dot placement.

Precision Control

The paper compensator bar ensures accurate synchronization of media with the printhead assembly, allowing high-speed production without artifacts.

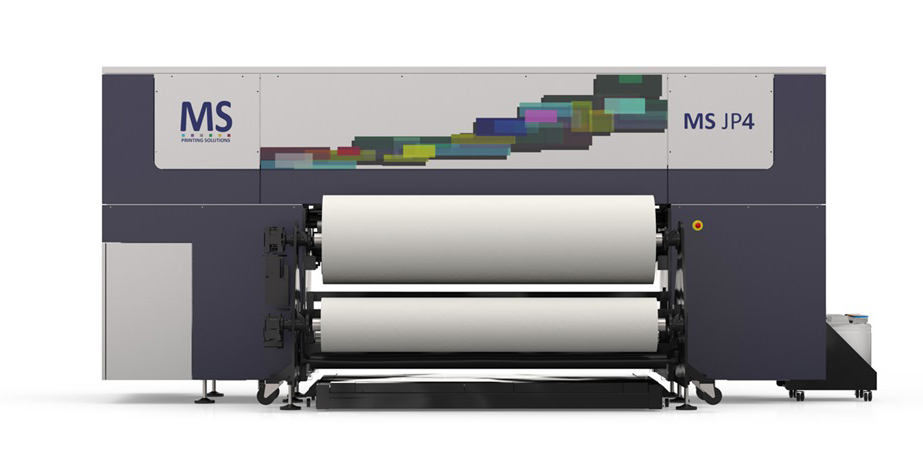

Bulk Media Handling

The mini-jumbo roll unwinder handles rolls up to 19.7 inches (500 mm) in diameter, reducing operator intervention.

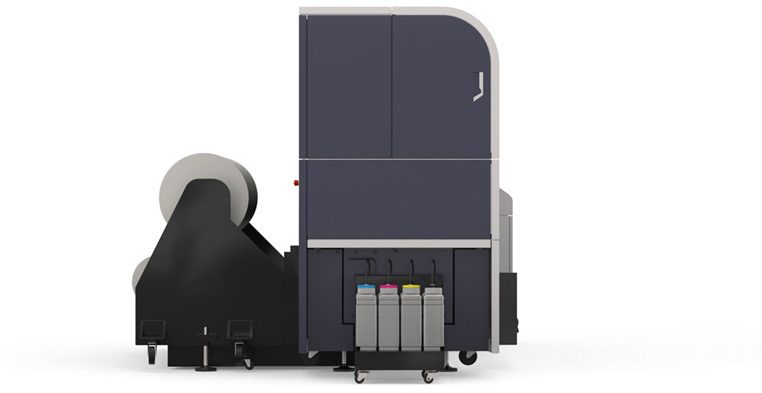

Large Ink Tank Capacity

Each color has a 10-liter ink tank, maximizing uptime for unattended operation.

Product Video

Technical Specifications

PRINTING TECHNOLOGY
  • SCANNING
PRINTING WIDTH
  • 1800mm
MAX NR° OF COLORS
  • up to 8
NR° OF PRINT HEADS
  • 8
MAX SPEED 8 COLORS (TEXTILE PRINTERS)
  • 170 m/h
MAX SPEED 2XCMYK (TEXTILE PRINTERS)
  • 210 m/h
MAX SPEED 8 COLORS (PAPER PRINTERS)
  • 255 sqm/h
MAX SPEED 2XCMYK (PAPER PRINTERS)
  • 315 sqm/h
