DGI (DGen) Poseidon II
The Poseidon II is a high-speed, high-resolution dye sublimation printer. It features Kyocera print heads with options for 4 or 8 heads, supporting both water-based dye sublimation and graphic pigment inks. It offers a maximum printing width of 1,820mm and resolutions up to 600 x 1,800 dpi.
Description
Product Info
- Print Width: Offers a wide printing capability, typically up to 1.9 meters, ideal for large-format textile applications.
- High-Speed Performance: Capable of printing at impressive speeds suitable for large-scale production environments.
- Advanced Tension Control: Ensures accurate fabric feeding and prevents material distortion during printing.
- Heavy-Duty Build: Designed for industrial use with a robust, durable structure for continuous production.
- Intuitive Touchscreen Interface: Simplifies operation with easy-to-use controls and real-time monitoring of print progress.
- Efficient Mist Removal System: Minimizes ink mist and debris, ensuring clean prints and extending printhead life.
- Media Flexibility: Supports a wide range of fabrics, including cotton, polyester, and blended textiles.
- Low Running Costs: Optimized for cost-efficiency, with reduced ink consumption and minimal maintenance requirements.
Head Cooling System

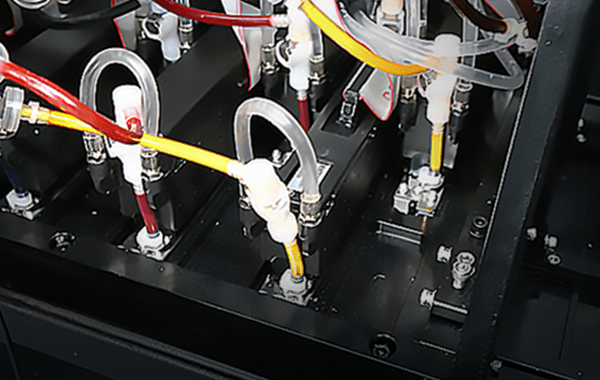

The water-based cooling system for the printhead helps regulate its temperature, allowing continuous printing and improving overall performance.Innovative Suction Plate

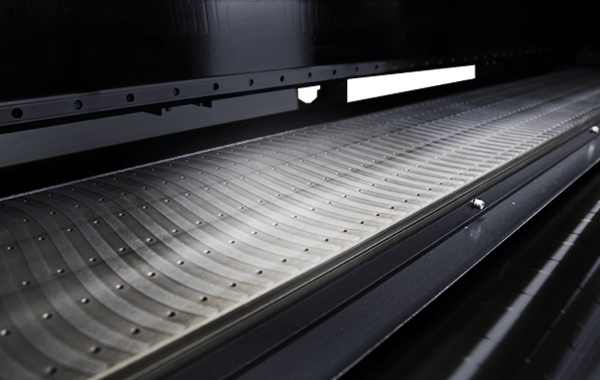

A newly developed S-shaped suction system minimizes cockling when using a significant amount of ink on lightweight transfer paper, ensuring smooth print results.Redesigned Wiping System

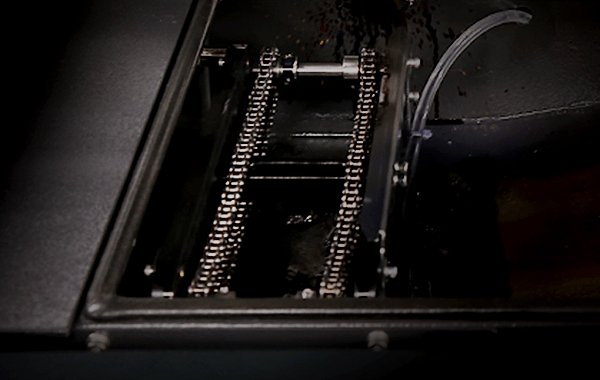

Featuring a chain wiping mechanism and automatic water flushing, the new system keeps the printhead blades in optimal condition, eliminating the need for manual cleaning by operators.High-Precision Linear Motor with Metal Encoder

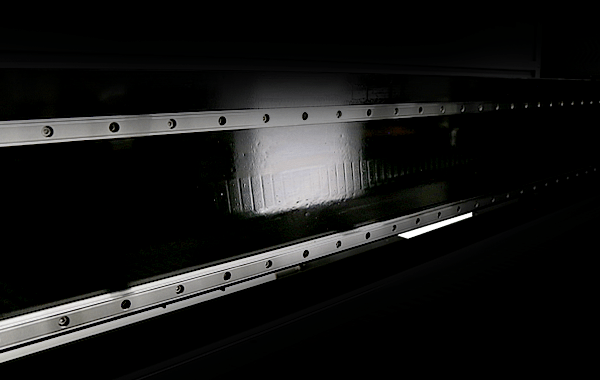

The combination of a linear motor and metal encoder scale guarantees precise printing, while also keeping operational and maintenance expenses low.Jumbo Roll Unwinding System

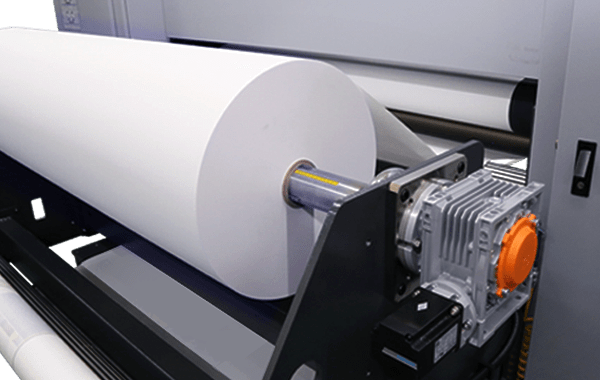

Designed to handle large-scale printing, the jumbo roll unwinding system supports paper rolls with a maximum diameter of 800mm and weight of up to 700kg (optional).Bulk Type Ink Refill System (10L Capacity)

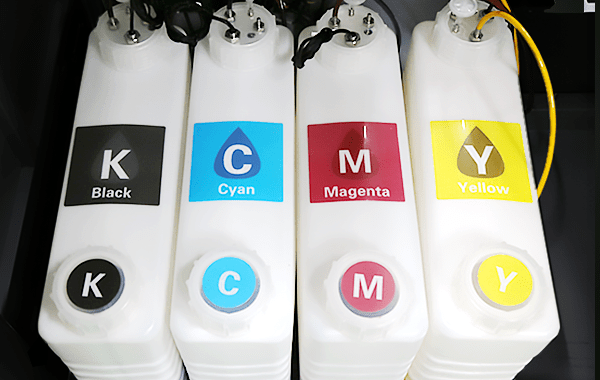

The easy-access bulk ink system allows refilling during printing, facilitating high-volume production without interruptions.Product Video
Video Coming Soon
Technical Specifications
Printing Speed
- 760sqm/h - 300 X 600dpi 1pass
- 500sqm/h - 600 X 600dpi 1pass
- 350sqm/h - 300 X 1,200dpi 2pass
- 280sqm/h - 508 X 1,200dpi 2pass
- 155sqm/h - 600 X 1,800dpi 3pass
- Yellow, Magenta, Cyan, Black
- Yellow, Magenta, Cyan, Black, Lc, Lm, Fm, Fy
- Yellow, Magenta, Cyan, Black
- 10L
Print Head
- Kyocera, 4/8 Heads
- Water Based Dye Sublimation Water Based Graphic Pigment
- 4 / 8
- 600 X 1,800dpi
- 1,820mm
- Bi-Direction/Uni-Direction
