Barbieri Spectro LFP QB Digital Press Edition

The Spectro LFP qb Digital Press edition is an Automatic Reflection Spectrophotometer for color measurement of reflective paper-like materials with smooth and finely textured surfaces in various digital printing applications.



It offers fully automated reflection measurements for materials up to 20 mm with its variable 2-6 mm measurement aperture. It is made to measure paper and paper-like material and a variety of packaging materials like carton and corrugated.

Description

Product Info

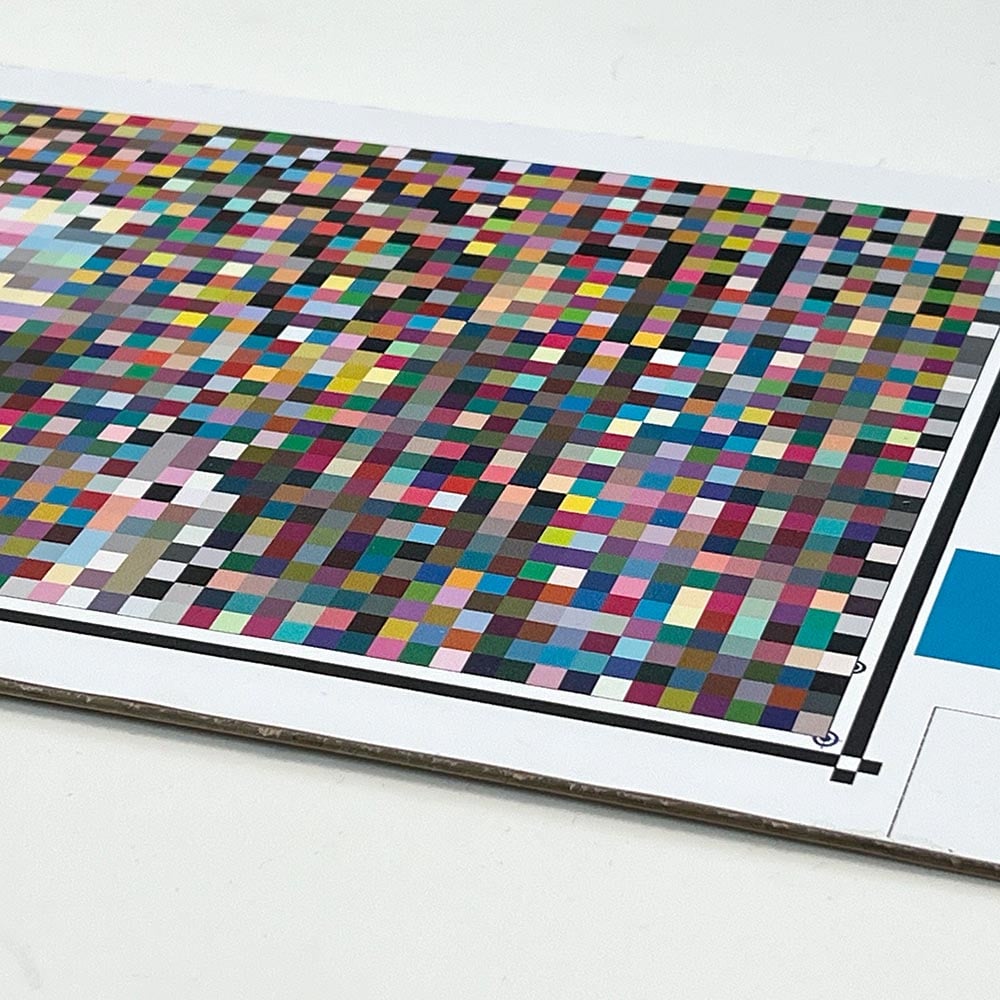

  • Fully automated reflection color chart measurements
  • Variable measurement aperture (2mm – 6 mm)
  • Measure reflective materials up to 20 mm
  • Built-in Barbieri qb technology including M0-M1-M2-M3 measurement conditions (ISO 13655)

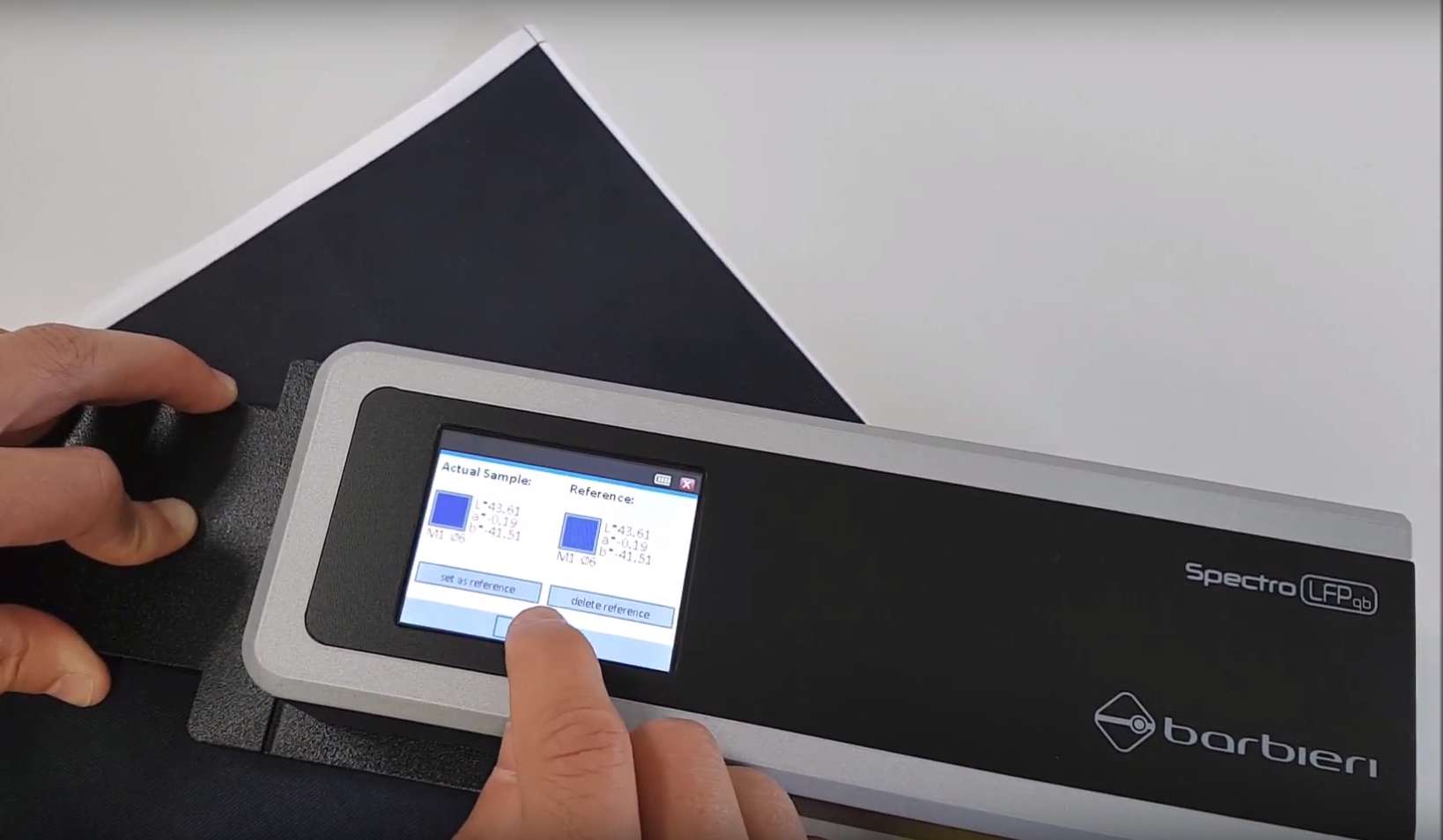

  • Removable measurement head for wireless spot color measurements

Reviews

There are no reviews yet.

Be the first to review “Barbieri Spectro LFP QB Digital Press Edition”

Your email address will not be published. Required fields are marked *

Markets

  • Digital high-speed inkjet presses
  • Single-pass inkjet presses
  • Label and Packaging inkjet presses

Materials

  • Paper and paper-like materials
  • Corrugated
  • Labels and Adhesives
  • Carton board

Applications

  • Creation of ICC-profiles for color management (International Color Consortium)
  • Linearization and calibration of Digital Output devices
  • Color accuracy and stability control

Product Video

Technical Specifications

Measurement conditions
  • According to ISO 13655-2017 Reflection: M1 (method a), M0, M2 (UVcut), M3 (reflection only, with optional polarization filter)
Measuring apertures
  • variable between 2 and 6 mm diameter (reflection)
Geometry
  • reflection 45°:0° circumferential (ISO 5-4:2009)
Calibration
  • automatic with internal white reference
Physical illumination
  • programmable color temperature - Reflection: 3 point circumferential, 7 LED-chip
Measuring sensor: diffraction grating with diode array
  • Spectral range: 380 ... 750 nm
  • Spectral resolution: 2 nm
  • Optical resolution: 10 nm
Spectral reflectance range
  • Dynamic (> 200%) for measurement of fluorescent specimens
Short term repeatability
  • 0.05 ΔE00 on white ceramic tile (standard deviation, 10 measurements made in spot mode) < 0,2 ΔE00 in scanning mode
Inter-instrument agreement on 12 BCRA color tiles
  • Average: 0.5 ΔE00
  • Max: 1.0 ΔE00
Display
  • 320x240 pixel, touch screen
