Barbieri Spectro LFP QB Textile Edition

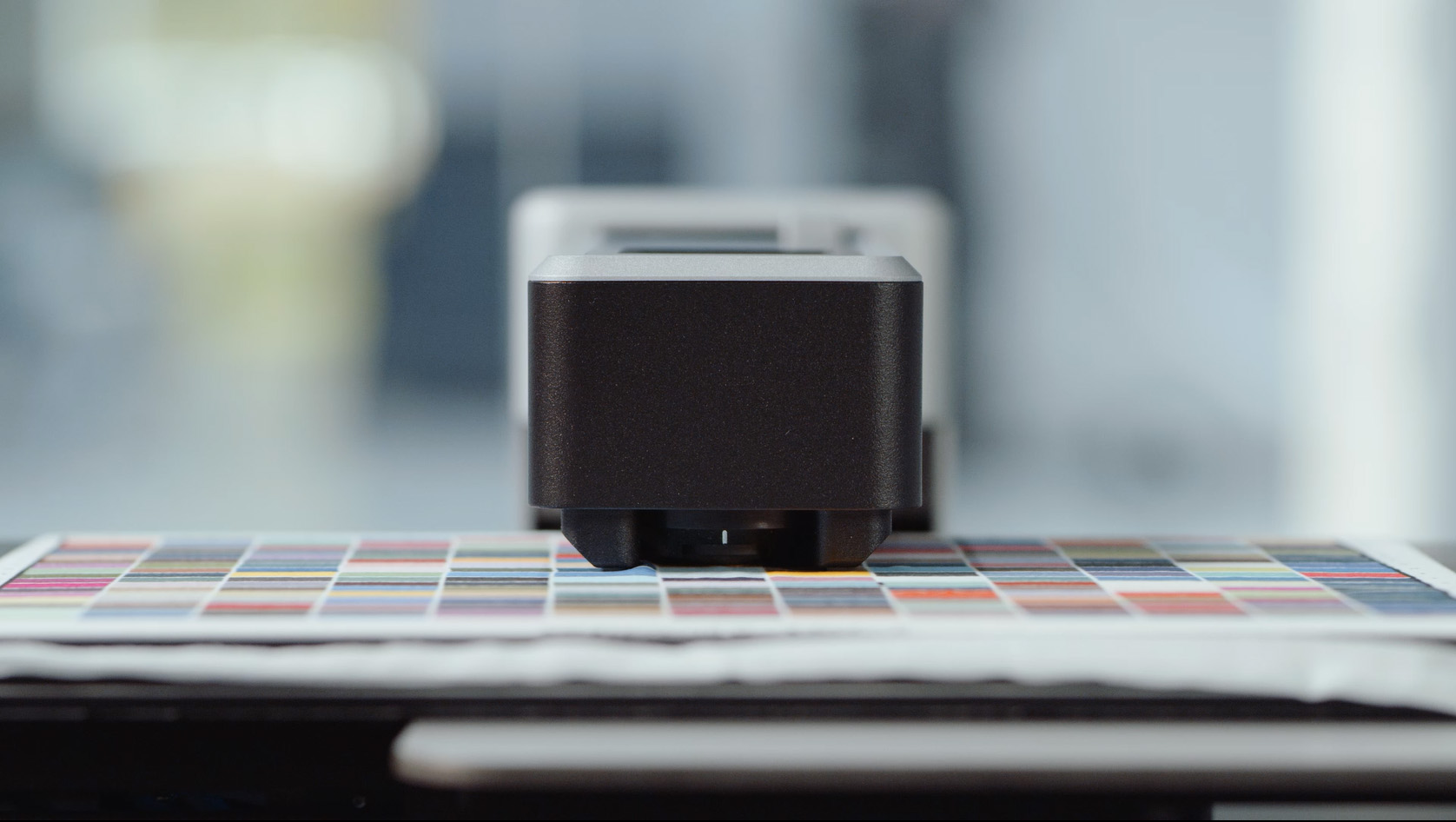

The Spectro LFP qb Textile Edition is an Automatic Reflection and Transmission Spectrophotometer for color measurement of all substrates including textiles and garments in various digital printing applications.

It is the worldwide unique solution for automatic color measuring in digital dye-sublimation and direct-to-garment printing. It is based on the Spectro LFP qb and has dedicated software and accessories who makes it possible to measure fully automatically and with highest precision and repeatability any kind of textiles and fabrics.

Description

Product Info

  • Fully automated reflection and transmission color chart measurements
  • Variable measurement aperture (2mm – 6 mm – 8 mm)
  • Measure reflective materials up to 20 mm
  • Built-in Barbieri qb technology including M0-M1-M2-M3 measurement conditions (ISO 13655)
  • Removable measurement head for wireless spot color measurements
  • Sensing unit for autopositioning of color charts and detection of distorted charts with integrated automatic target recognition
  • Air blowing system to prevent textile fibers from contaminating the optics
  • Electrostatic textile sample holder

Reviews

There are no reviews yet.

Be the first to review “Barbieri Spectro LFP QB Textile Edition”

Your email address will not be published. Required fields are marked *

Markets

  • Digital Textile printing including garments and fashion
  • Digital Signage printing
  • Industrial and Décor printing

Materials

  • Cotton
  • Silk
  • Polyester
  • Viscose
  • Wool
  • Linen
  • Mixed fabrics
  • Various digitally printed materials

Applications

  • Creation of ICC-profiles for color management (International Color Consortium)
  • Linearization and calibration of Digital Output devices
  • Color accuracy and stability control

Product Video

Technical Specifications

Measurement conditions
  • According to ISO 13655-2017 Reflection and transmission: M1 (method a), M0, M2 (UVcut), M3 (reflection only, with optional polarization filter)
Measuring apertures
  • variable between 2, 6 and 8 mm diameter (reflection and transmission)
Interface
  • USB 2.0 type C
  • WiFi 2,4 GHz IEEE 802.11b/g/n (2,4 GHz only)
  • Open, WEP, WPA, WPA2 Security
  • FCC (USA), IC (Canada), CE (Europe), MIC (Japan), KCC (South Korea); UKCA (UK) Certified
Geometry
  • reflection 45°:0° circumferential (ISO 5-4:2009)
  • transmission d:0 (ISO 5-2)
Calibration
  • automatic with internal white reference
Measuring sensor: diffraction grating with diode arr
  • Spectral range: 380 ... 750 nm
  • Spectral resolution: 2 nm
  • Optical resolution: 10 nm
Spectral reflectance range
  • Dynamic (> 200%) for measurement of fluorescent specimens
Short term repeatability
  • 0.05 ΔE00 on white ceramic tile (standard deviation, 10 measurements made in spot mode) < 0,2 ΔE00 in scanning mode
Inter-instrument agreement on 12 BCRA color tiles
  • Average: 0.5 ΔE00
  • Max: 1.0 ΔE00
Display
  • 320x240 pixel, touch screen
